PAT Testing Class 1 and Class 2 Examples: Understanding Electrical Appliance Classes

PAT testing separates Class 1 and Class 2 appliances based on protective measures and testing requirements. Class 1 items use basic insulation plus an earth connection; examples include cookers, refrigerators, and many metal-cased power tools that need earth continuity checks. Class 2 items rely on double or reinforced insulation and lack an earth lead; examples include many handheld tools, phone chargers and plastic-cased appliances tested for insulation resistance only. Further guidance explains identification, test steps and fault actions.

Key Takeaways

• Class 1 appliances require a protective earth and are often metal-cased items like cookers, fridges, and some power tools.
• Class 2 appliances have double or reinforced insulation, no earth connection, and include many handheld tools and phone chargers.
• Identify class by markings: Class 1 shows an earth symbol/terminal; Class 2 shows the double-square (⧈) symbol.
• PAT testing: Class 1 requires earth continuity plus insulation tests; Class 2 focuses on insulation resistance and functional checks.
• Faults: isolate and tag failed appliances, repair by a competent person, retest, or decommission if unrepairable.

Class 1 vs Class 2: The Bottom Line for PAT

When comparing Class 1 and Class 2 appliances for PAT, the essential distinction rests on whether basic insulation alone or additional protective measures are required: Class 1 appliances rely on basic insulation and a protective earth connection to prevent electric shock; their safety depends on intact basic insulation plus an earthing conductor and often a fuse or RCD. Class 2 appliances incorporate supplementary or double insulation, eliminating the need for an earth connection; their design prevents accessible conductive parts from becoming live even if basic insulation fails.

For PAT purposes, this means inspection and testing focus differ: Class 1 items require verification of continuity to earth and correct polarity alongside insulation checks, while Class 2 items emphasise insulation integrity and the absence of exposed conductive parts requiring earthing. Understanding this contrast guides appropriate test selection, frequency, and interpretation of results, ensuring each appliance class receives the measures necessary to demonstrate safe operation in the workplace.

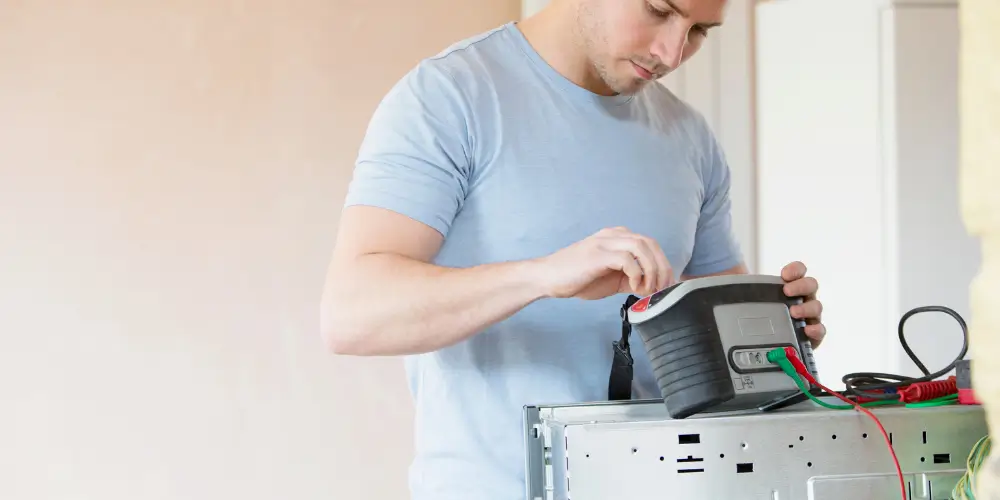

How to Spot Class 1 Vs Class 2 (Quick PAT Hints)

Identifying Class 1 versus Class 2 appliances often comes down to a quick visual check and a few telltale labels: look for the double square symbol (⧈) indicating Class 2, or an earth symbol or terminal suggesting Class 1. Class 2 items typically have reinforced or double-insulation markings on the casing and lack an earth lead; they are often plastic-bodied, with accessible screws covered or insulated. Class 1 devices normally feature metal parts, an earth connection point, or a marked chassis that implies protective earthing is intended. Cable terminations and plugs can give clues: unpolarised or two-pin designs lean towards Class 2, while three-pin plugs often accompany Class 1 equipment. Check manufacturer labels, user manuals, and appliance rating plates for the class symbol or wording. When in doubt, a competent tester should verify the construction and marking rather than assuming based solely on appearance.

Class 1 Appliance Examples and Why They Need Earthing

Having established the visual cues that distinguish Class 2 from Class 1 equipment, attention turns to concrete examples of Class 1 appliances and the reason protective earthing is required. Class 1 devices rely on basic insulation plus a functional earth connection to prevent accessible metal parts rising to dangerous potential if internal insulation fails. Common examples include cookers with metal casings, freestanding refrigerators, metal-bodied power tools, and commercial kettles.

1. Metal-cased appliances  casing bonded to earth so fault currents trigger protective devices.
2. High-current stationary equipment  earth paths reduce touch voltage and support protective device operation.
3. Portable tools with exposed conductive parts  earthing mitigates shock risk if wiring is damaged.

Earthing provides a low-impedance route for fault current, ensuring overcurrent devices operate quickly and limiting voltage on exposed parts. For PAT testing, Class 1 items require earth continuity and insulation checks to confirm this protective measure remains effective and safe.

Class 2 Appliance Examples and Why They Don’t Need Earthing

Double-insulated appliances rely on layered insulation and safety design rather than a protective earth, so they present a lower risk of accessible metal becoming live if an internal fault occurs. Class 2 items are identifiable by a square within a square symbol and include many handheld power tools, some hairdryers, phone chargers, and modern lamps with plastic or double-insulated casings. Their construction uses reinforced insulation, separated live parts, and non-conductive external surfaces to reduce shock risk without an earth connection.

Because no exposed conductive parts are intended to become live, earthing is unnecessary; instead, safety depends on maintaining intact insulation and correct assembly. Inspection focuses on casing integrity, cable condition, strain relief, and the absence of internal damage that could defeat insulation. PAT testing for Class 2 emphasises that earth continuity is not required, while insulation resistance and functional checks verify that the double insulation remains effective and the appliance is safe for use.

PAT Test Steps: Class 1 Vs Class 2

How do PAT test procedures differ between Class 1 and Class 2 appliances? A clear procedural distinction exists because Class 1 appliances require earth continuity verification while Class 2 appliances do not. The tester follows tailored sequences and measurements to confirm safety.

1. For Class 1, the examiner measures earth continuity, insulation resistance, and conducts an earth leakage or functional test, as applicable, to ensure protective bonding is effective.
2. For Class 2, the focus shifts to insulation resistance and applied voltage tests where required; without an earth conductor, no continuity measurement is performed.
3. Both classes require a final safety assessment and proper labeling; results guide remedial action or removal from service.

The protocol emphasises appropriate test voltages, limits, and instrument selection for each class. Documentation must record test values, instrument calibration status, and any corrective steps. This procedural clarity helps guarantee tests target the specific protection methods designed into each appliance class.

Visual Checks and Simple Tests You Can Do First

Begin with a systematic visual inspection and a few simple, non-invasive checks to identify obvious hazards before any electrical testing. The inspector notes damaged cords, exposed conductors, loose plugs, scorch marks, and missing covers. For Class 1 appliances, the earth connection and plug integrity receive particular attention; for Class 2, the integrity of the double insulation and external enclosure is checked. Simple operation checks follow: switch function, indicator lamps, and audible noises during power-up. Gently flex cables to reveal hidden faults; confirm strain reliefs and secure cable entries. Any items with visible damage are isolated and labeled for repair or disposal before formal PAT testing.

Check area	What to look for
Cables and plugs	Cuts, frays, bent pins, loose connections
Enclosures	Cracks, missing covers, signs of overheating
Operation	Switches, indicators, unusual sounds or smells

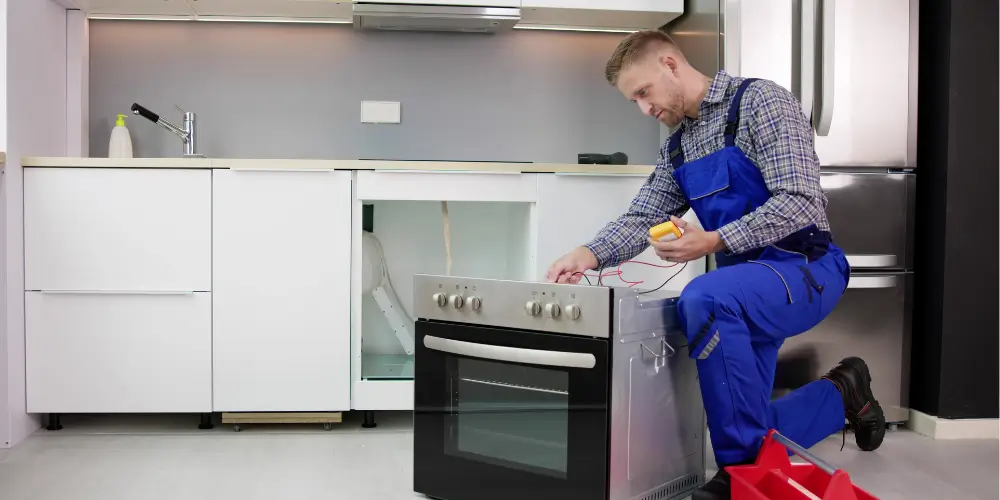

PAT Compliance: Frequency, Records, and Responsibilities

After completing visual checks and simple operation tests, attention turns to the administrative framework that governs Portable Appliance Testing: how often inspections and tests should be carried out, what records must be kept, and who holds responsibility for compliance. Guidance recommends risk-based frequencies rather than fixed intervals; high-use or harsh-environment equipment requires more frequent checks, whereas low-risk items need less. Clear records support safety management and demonstrate due diligence.

1. Frequency: establish schedules based on risk assessments, manufacturer guidance, and usage patterns.
2. Records: maintain test dates, results, asset identifiers, remedial actions, and tester details for auditing and trend analysis.
3. Responsibilities: define duties for duty holders, competent testers, and custodians to guarantee inspections, tagging, and record retention.

Consistent documentation and role clarity reduce legal exposure and operational downtime. Organizations benefit from documented policies that align testing cadence with operational risk and regulatory expectations.

What to Do If an Appliance Fails PAT (Troubleshooting)

Isolate the appliance immediately from the supply and tag it as faulty to prevent further use. The tester or responsible person should record the failure details: appliance identification, test results, and observed defects. A competent person must assess whether the fault is repairable, requires replacement, or necessitates disposal. Simple issues such as a damaged plug, loose connection, or fuse failure may be corrected by a qualified electrical technician and followed by re-testing. For Class I appliances, confirm protective earth continuity and insulation are verified after any repair. For Class II appliances, verify double insulation integrity. If repairs are not feasible or safety cannot be guaranteed, remove the appliance from service permanently. Document all actions, including who performed repairs and the outcome of any retesting. Communicate the status to users and update records to reflect the appliance’s safe condition or decommissioning, maintaining compliance and traceability.

Frequently Asked Questions

Conclusion

In conclusion, understanding Class 1 and Class 2 distinctions is essential for effective PAT testing and electrical safety. Class 1 appliances require earthing and thorough inspections to mitigate shock risks, while Class 2 devices rely on double insulation and have different test procedures. Proper visual checks, documented testing frequencies, and clear responsibility allocation guarantee compliance. If failures occur, prompt isolation, repair by competent personnel, and retesting maintain workplace safety and legal adherence.
